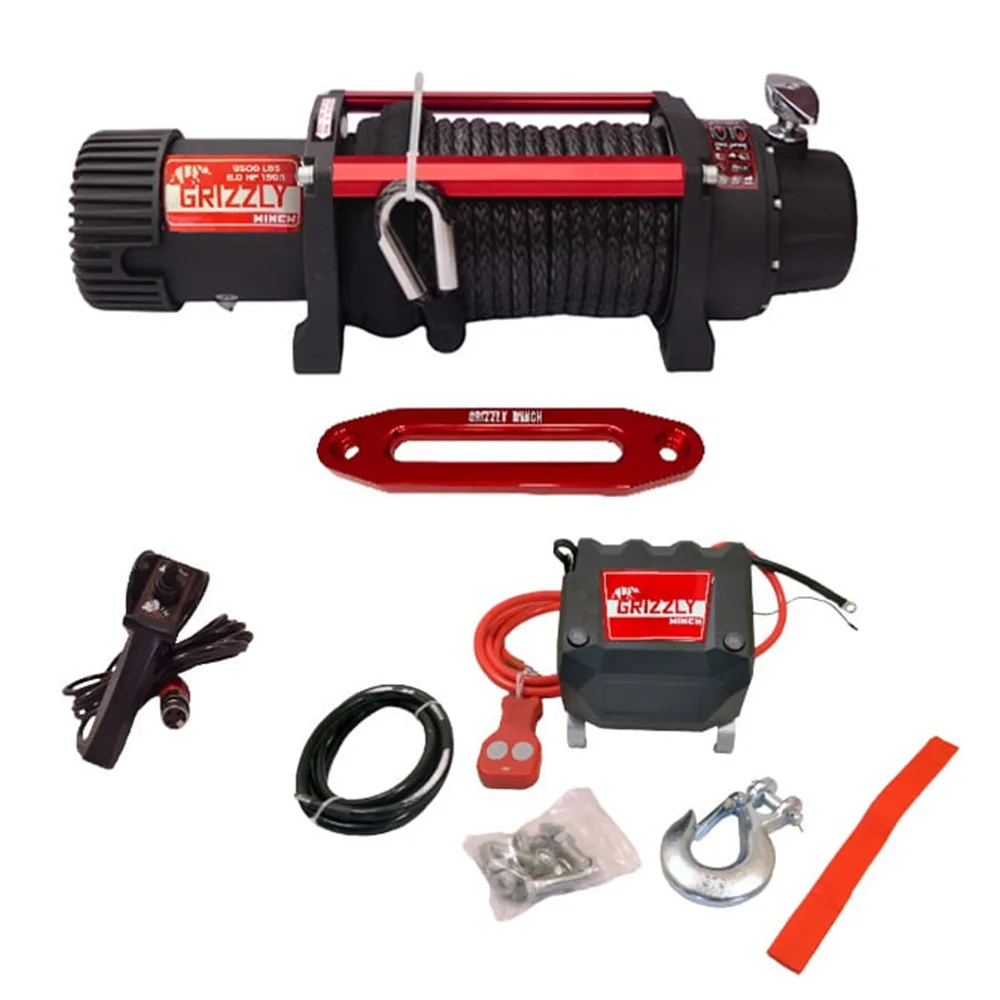

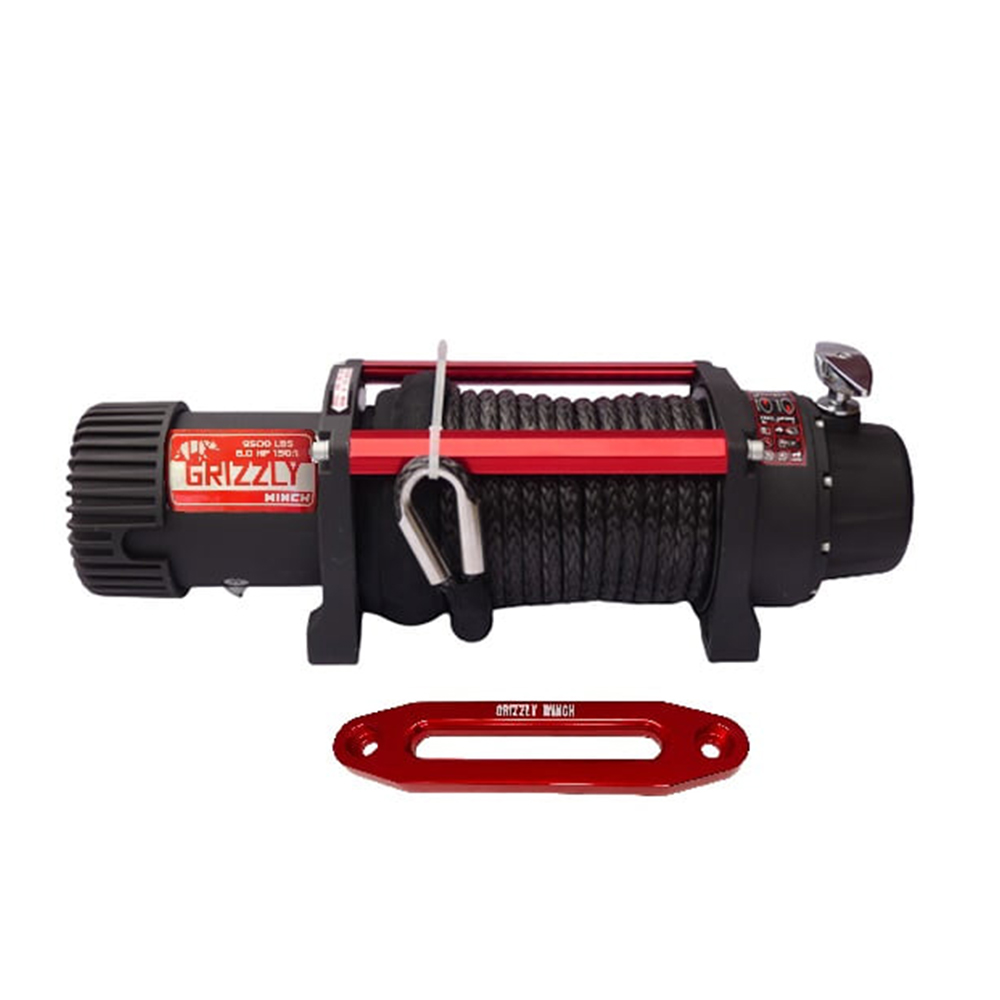

Grizzly Electric Winch 9,500 lbs 12V 150:1 – Synthetic Rope
344,00 €
Grizzly 9,500 lbs (4310 kg) 12V electric recovery winch with a 150:1 planetary gearbox and synthetic rope.
- Capacity: 9500 lbs (4310 kg)
- Motor: 6.0 HP (4.5 kW)
- Rope: 25 m x Ø 10 mm
- Gear ratio: 150:1
- Remote: Wired and wireless
In stock
Grizzly 9,500 lbs 12V electric winch
A 9,500 lbs 12V recovery winch built for real off-road work. The 150:1 three-stage planetary gearbox delivers heavy pulling power from a compact housing, and the automatic brake holds the load whenever the motor stops.
Technical specification
- Pulling capacity: 9500 lbs (4310 kg)
- Synthetic rope: 25 m x Ø 10 mm
- Motor: 6.0 HP (4.5 kW)
- Voltage: 12V
- Gearbox: 3-stage planetary
- Gear ratio: 150:1
- Clutch: Manual engage/disengage
- Brake: Automatic
- Fairlead: Aluminum hawse

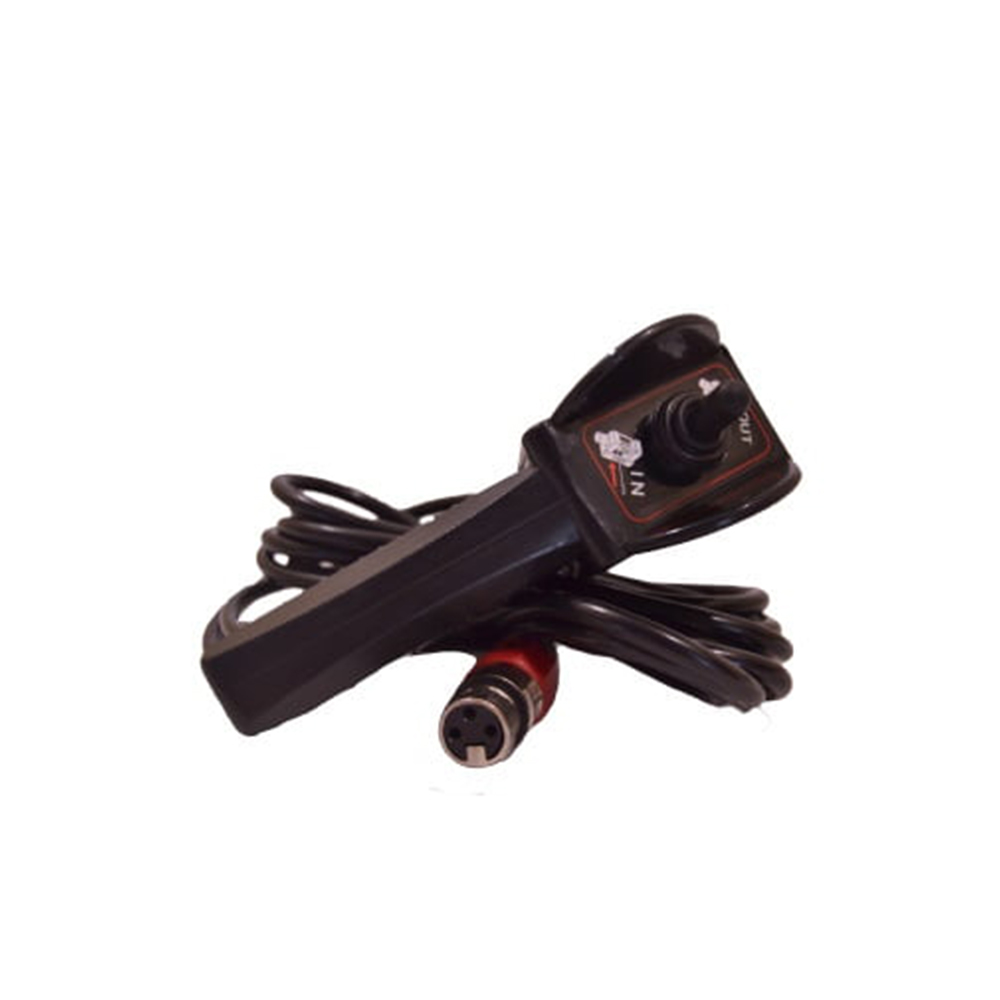

- Remote control: Wired and wireless
- Control box: Fixed position (central)
- Dimensions: 546 mm x 160 mm x 218 mm
- Mounting bolt pattern: 254 mm x 114.3 mm
- Maximum line load: 5897 kg
- Winch weight: 28 kg
Rope and fairlead
Synthetic rope stores almost no energy under tension, so if the line does part it drops rather than whipping back – a decisive safety advantage over steel. It is also light enough to pull out by hand and will not develop the sharp broken strands that make old steel cable dangerous to handle. Use it only with a hawse fairlead and keep it clear of hot surfaces.
Fitting
Mounting bolt pattern is 254 mm x 114.3 mm, so it fits winch plates and bumpers cut to that pattern. Feed the winch from the battery with correctly rated cable and a suitable isolator, and make sure the mounting plate is tied into the chassis rather than the bumper skin alone.
Operating advice
- Rig a snatch block for heavy or angled pulls – it roughly halves the load on the winch and the anchor
- Winch in short bursts and let the motor cool between pulls
- Keep at least five wraps of line on the drum at all times
- Never use a recovery winch to lift or suspend a load
| Weight | 28 kg |
|---|---|
| Dimensions | 54,6 × 16 × 21,8 cm |
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Roller Fairlead for Grizzly Winch – Steel Cable, 254mm Centres
Four-way steel roller fairlead for winches running steel cable. The rollers let the cable enter at a sharp angle without dragging over a fixed edge, which protects both the cable and the winch drum during off-centre pulls - the norm rather than the exception in real recoveries.
- For steel cable only - do not use with synthetic rope
- Four rollers handle side, up and down pull angles
- Steel construction
Red Aluminium Hawse Fairlead 25cm – Synthetic Winch Rope
Anodised red aluminium hawse fairlead for winches running synthetic rope. The polished radius guides the rope onto the drum from any angle without the sharp edges or pinch points that shred synthetic line - which is exactly why roller fairleads must never be used with rope.
- Synthetic rope only - never fit synthetic rope to a roller fairlead
- Machined aluminium with a smooth radiused throat
- Red anodised finish
Control Box Cover for Grizzly Winch – 8500 / 9500 / 13000 lbs
Replacement cover for the Grizzly winch control box. The cover is all that stands between the contactors and the mud, salt and standing water thrown up at bumper height, so a cracked or missing one leads directly to the corrosion that kills control boxes.
- Protects contactors from water, mud and road salt
- Direct replacement for a cracked or lost cover
- Cheap insurance against control box failure

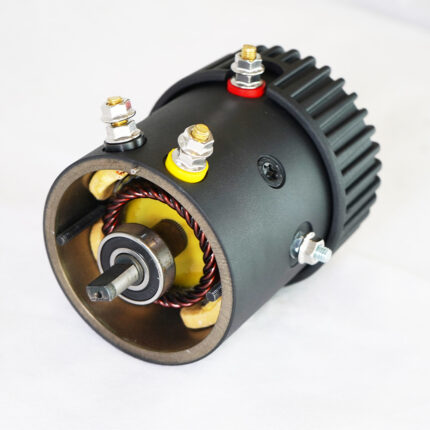

Grizzly Winch Motor – 12V Replacement Series Wound Motor
