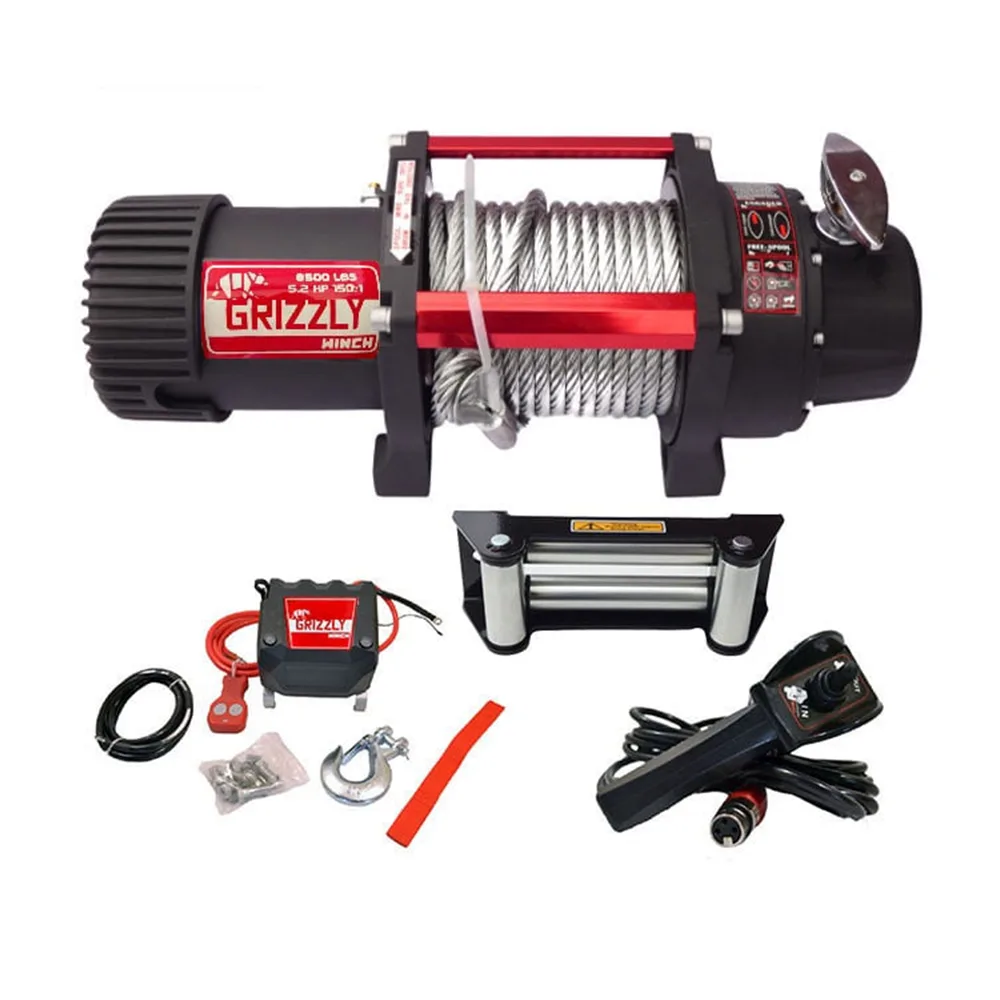

Grizzly Electric Winch 8,500 lbs 12V 150:1 – Steel Cable
306,00 €
Grizzly 8,500 lbs (3855 kg) 12V electric recovery winch with a 150:1 planetary gearbox and steel cable.
- Capacity: 8500 lbs (3855 kg)@@BR@@
- Motor: 5.2 HP (3.9 kW)@@BR@@
- Cable: 18 m x Ø 8 mm@@BR@@
- Gear ratio: 150:1
- Remote: Wired and wireless@@BR@@
In stock

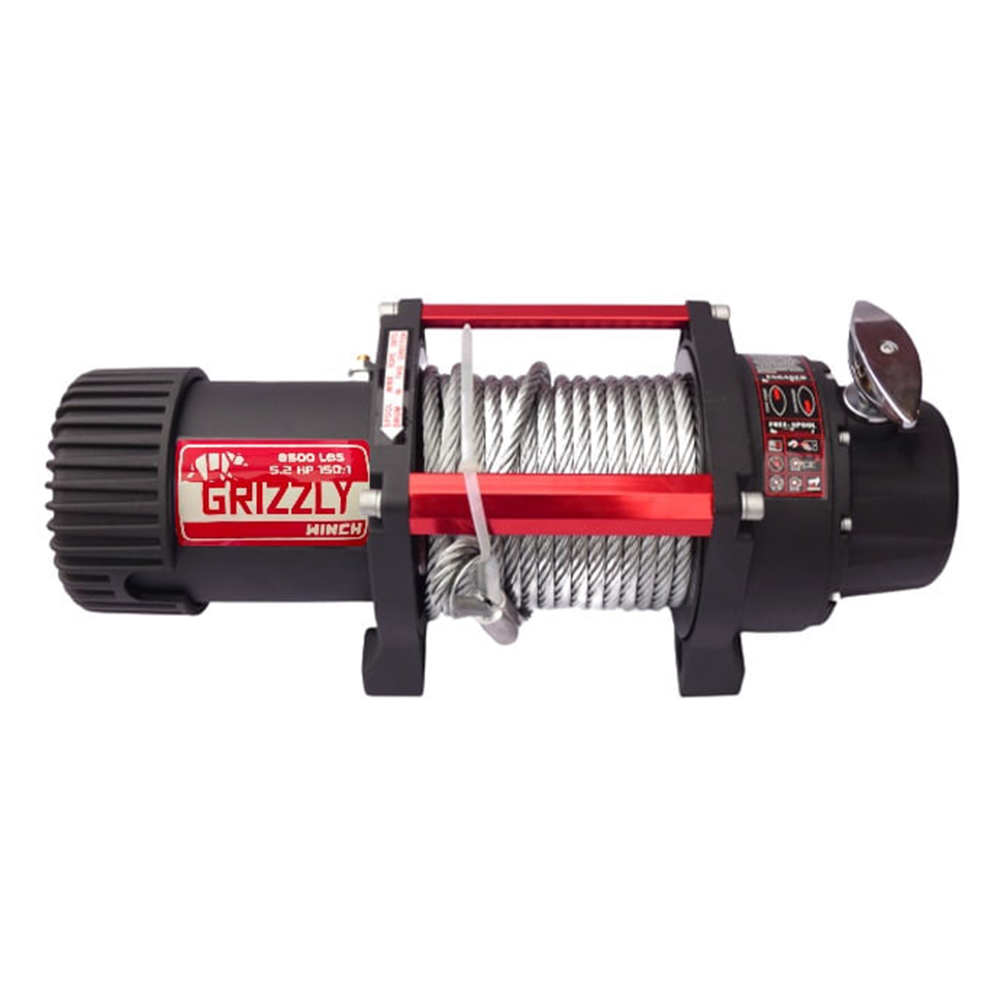

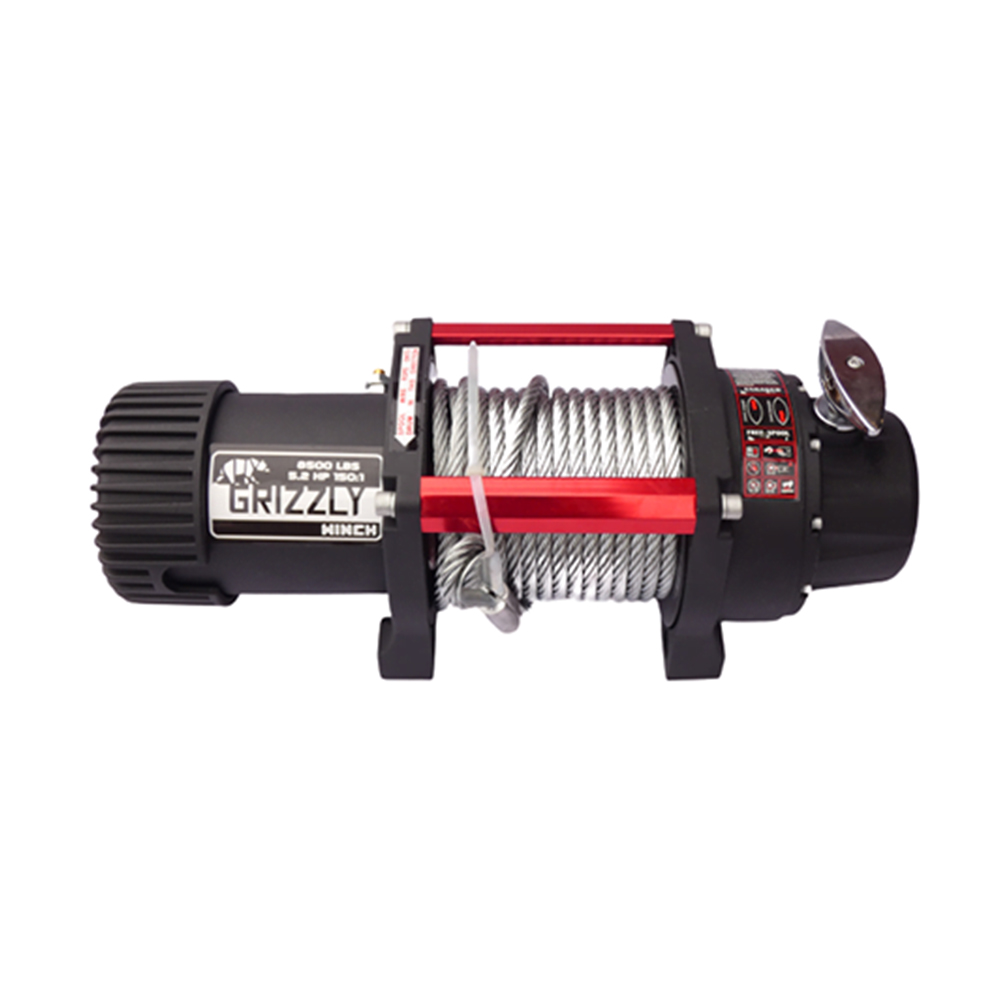

Grizzly 8,500 lbs 12V electric winch
This 8,500 lbs 12V winch is sized for full-size 4x4s and heavily loaded pick-ups. It ships with galvanised steel cable and a roller fairlead for hard, abrasive recovery work.
Technical specification
- Pulling capacity: 8500 lbs (3855 kg)@@BR@@
- Steel cable: 18 m x Ø 8 mm@@BR@@
- Motor: 5.2 HP (3.9 kW)@@BR@@
- Voltage: 12V@@BR@@
- Gearbox: Three-stage planetary@@BR@@
- Gear ratio: 150:1

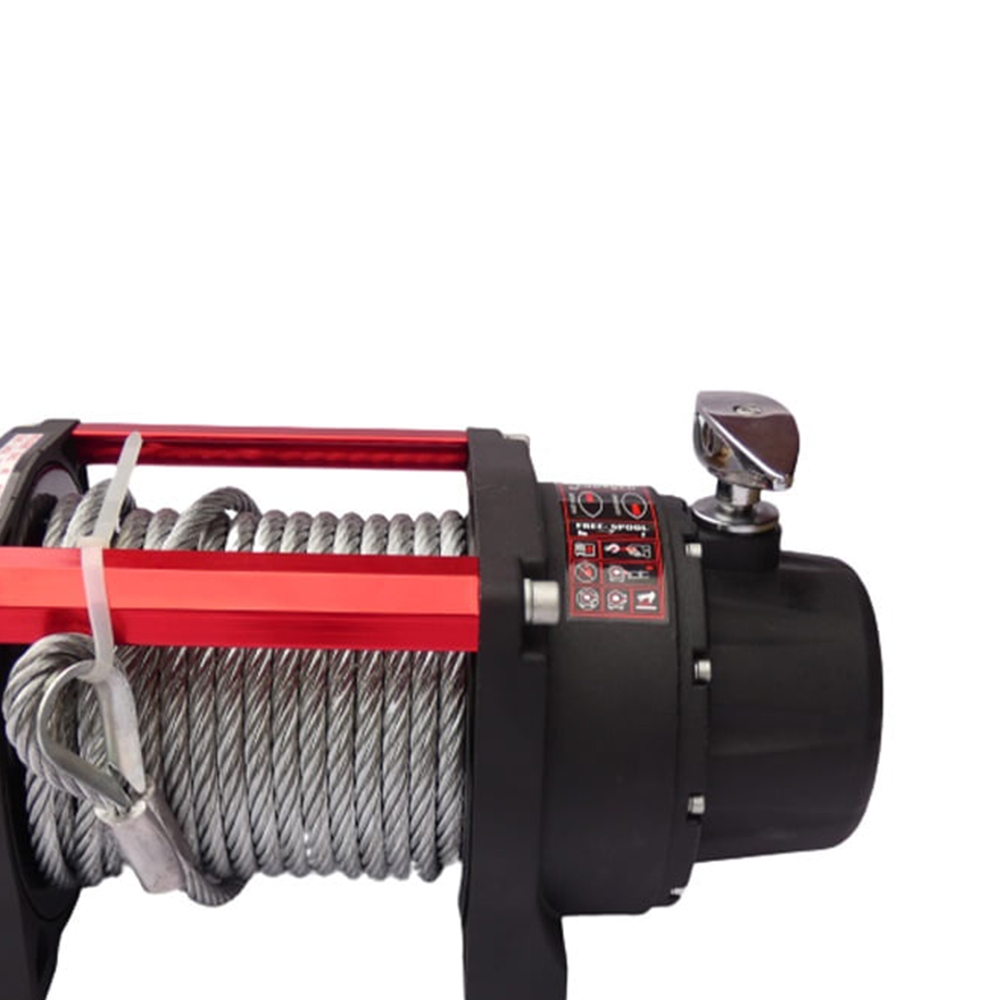

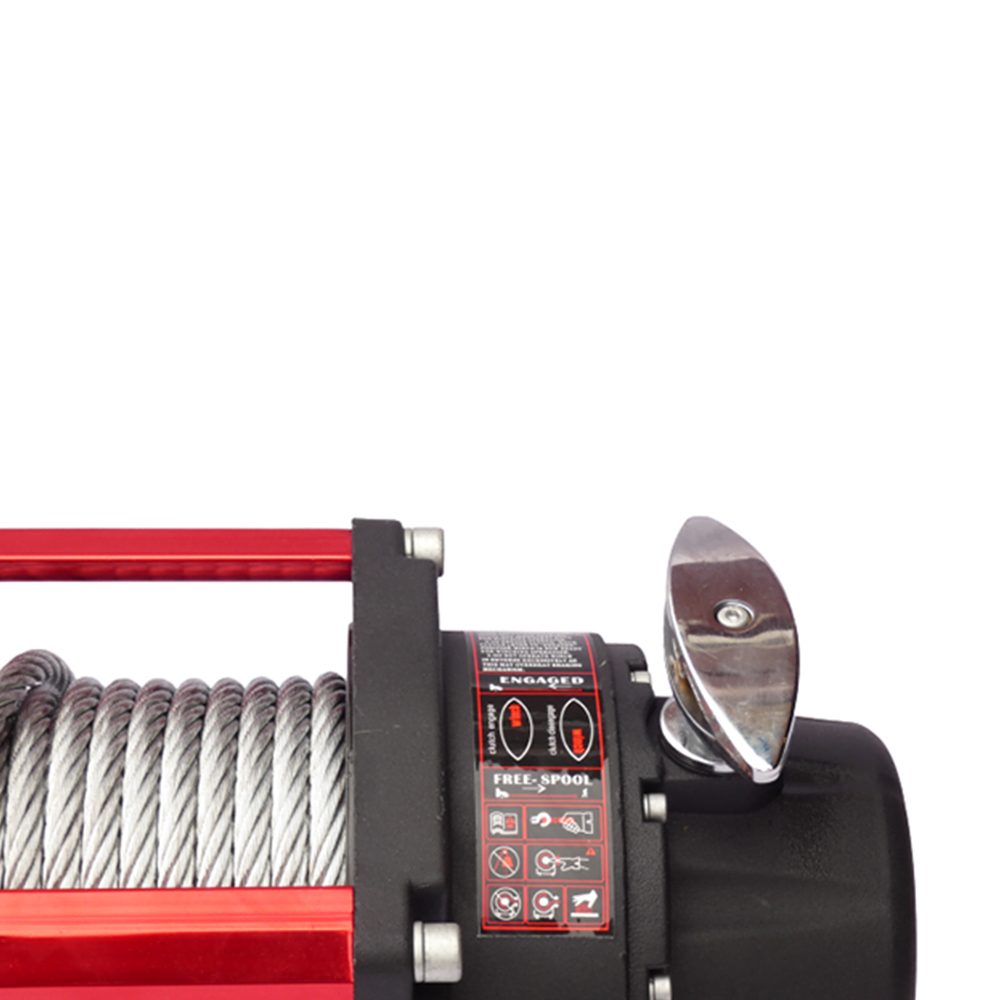

- Clutch: Manual engage/disengage@@BR@@
- Brake: Automatic@@BR@@

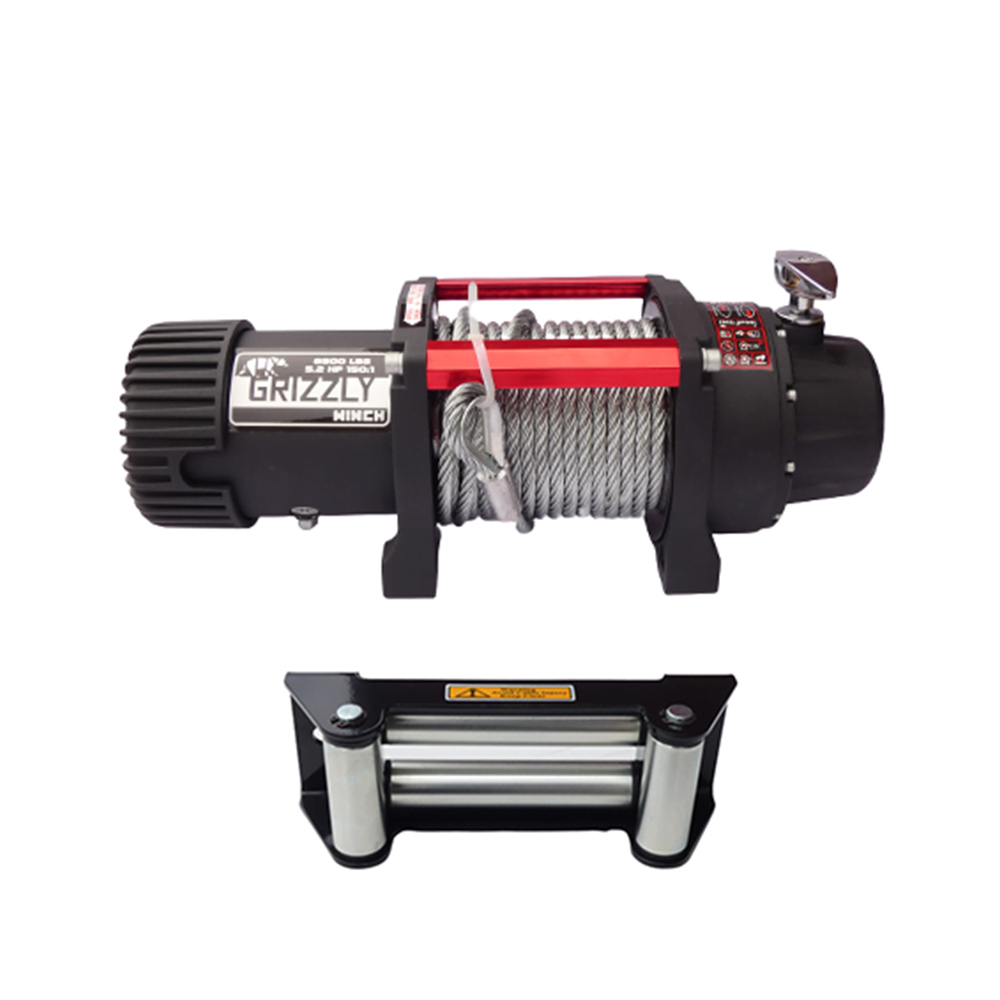

- Fairlead: Aluminum hawse@@BR@@
- Remote control: Wired and wireless@@BR@@
- Control box: Fixed position (central)@@BR@@
- Dimensions: 435 mm x 162 mm x 185 mm@@BR@@
- Mounting bolt pattern: 165 mm x 114.3 mm@@BR@@
- Maximum line load: 3630 kg Electric Winch 8,500 lbs 150:1 Grizzly Winch with Steel Cable
- Winch weight: 29 kg@@BR@@
Rope and fairlead
Galvanised steel cable is highly abrasion resistant and shrugs off dragging over rock and gravel. It stores significant energy under tension, so always lay a damper over the line during a pull and never step over a loaded cable. Wear gloves – used cable develops sharp broken strands.
Fitting
Mounting bolt pattern is 165 mm x 114.3 mm@@BR@@, so it fits winch plates and bumpers cut to that pattern. Feed the winch from the battery with correctly rated cable and a suitable isolator, and make sure the mounting plate is tied into the chassis rather than the bumper skin alone.
Operating advice
- Rig a snatch block for heavy or angled pulls – it roughly halves the load on the winch and the anchor
- Winch in short bursts and let the motor cool between pulls
- Keep at least five wraps of line on the drum at all times
- Never use a recovery winch to lift or suspend a load
| Weight | 32 kg |
|---|---|
| Dimensions | 43,5 × 16,2 × 18,5 cm |
