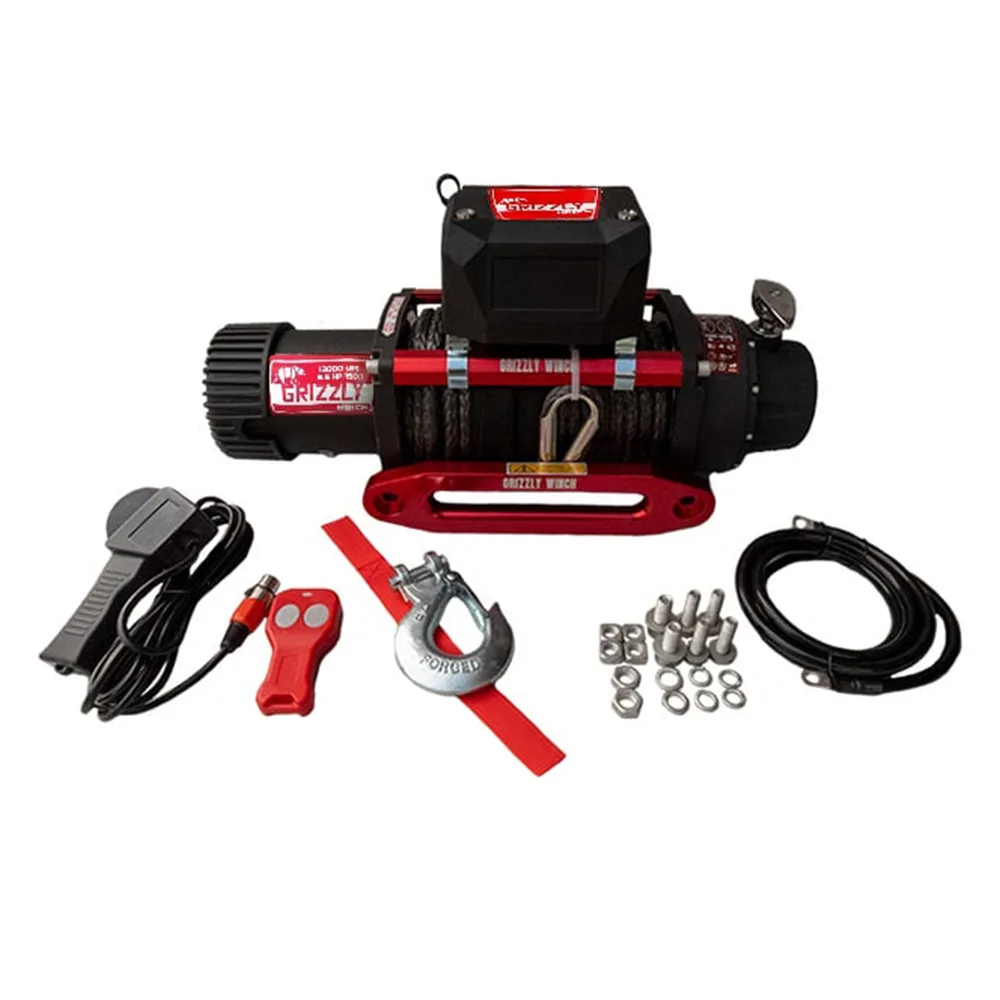

Grizzly Electric Winch 13,000 lbs 12V 150:1 – Synthetic Rope
363,00 €
Grizzly 13,000 lbs (5,897 kg) 12V electric recovery winch with a 150:1 planetary gearbox and synthetic rope.
- Capacity: 13,000 lbs (5,897 kg)
- Motor: 6.5 HP (4.5 kW)
- Rope: 25 m x Ø 10 mm
- Gear ratio: 150:1
- Remote: Wired and Wireless
In stock

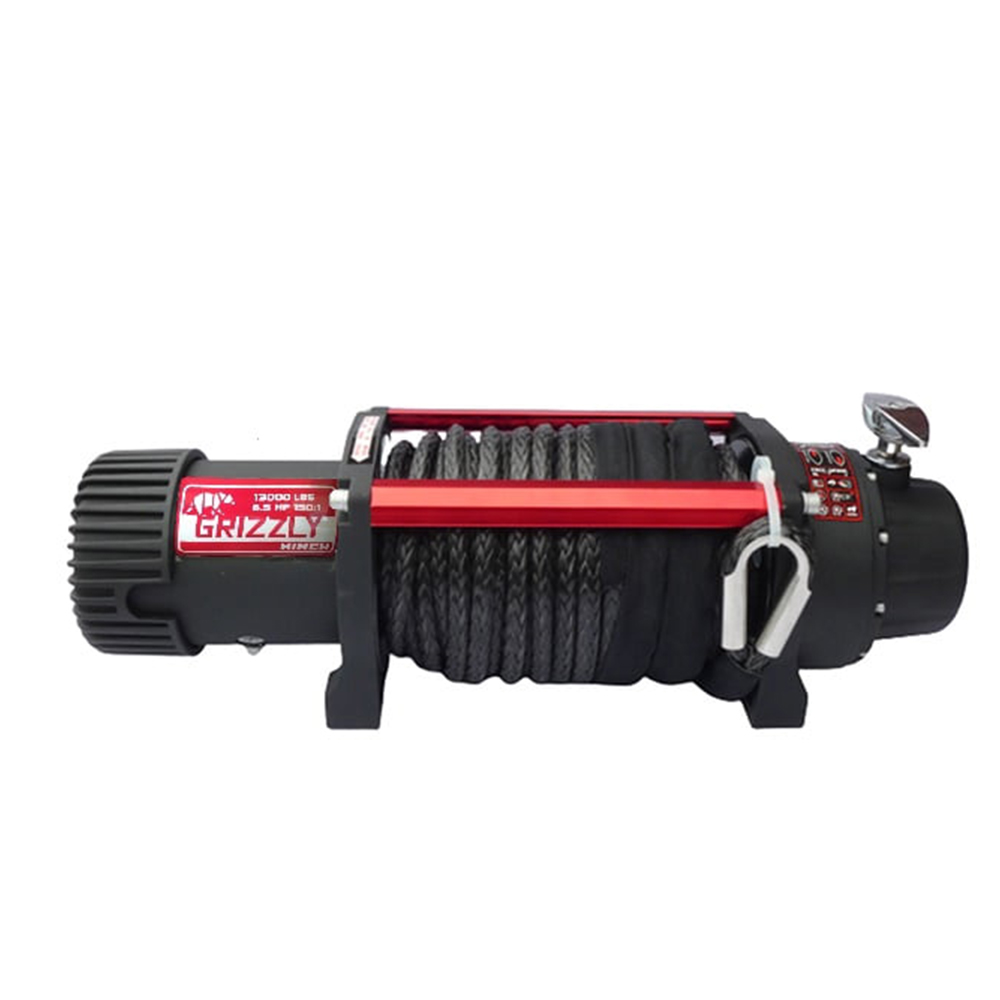

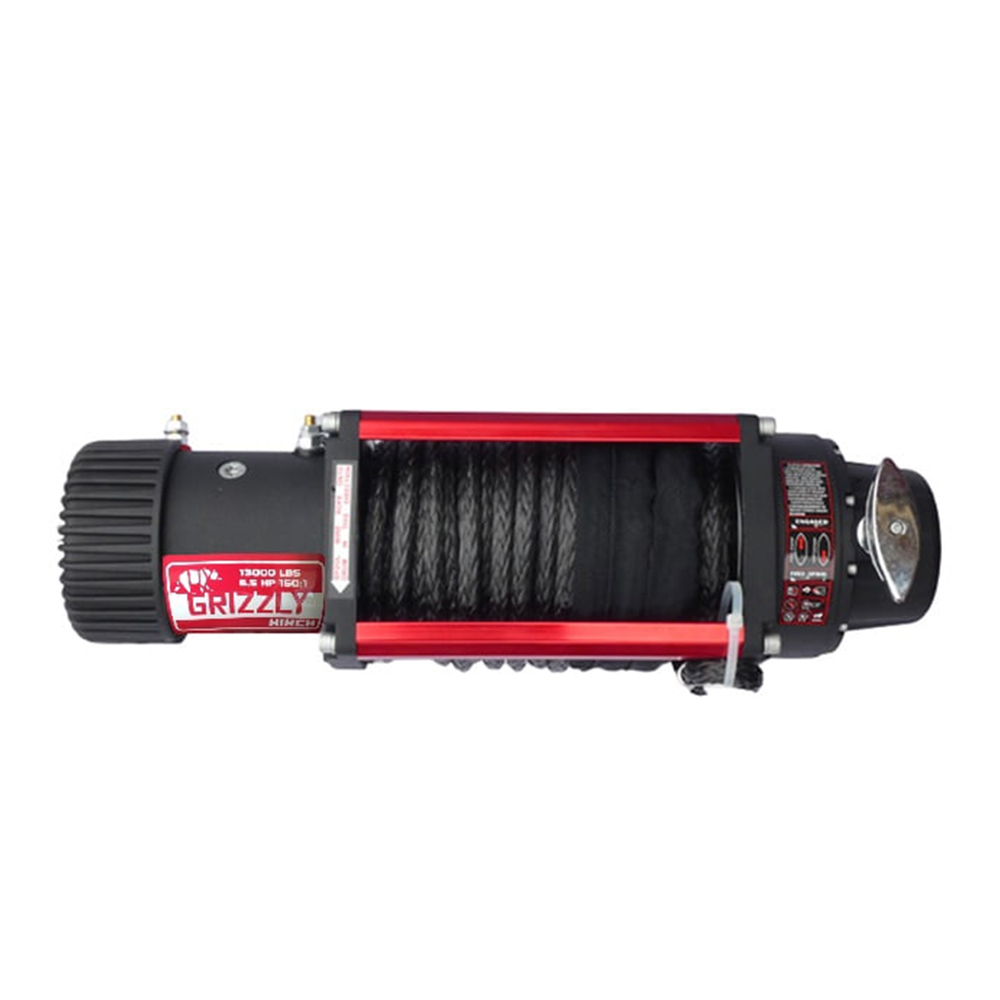

Grizzly 13,000 lbs 12V electric winch
Grizzly’s 13,000 lbs electric winch pairs a 6.5 HP (4.5 kW) series-wound motor with a 150:1 planetary reduction. That combination gives the low-speed grunt needed to drag a bogged vehicle out under full load, not just the headline figure on a straight pull.
Technical specification
- Pulling capacity: 13,000 lbs (5,897 kg)
- Synthetic rope: 25 m x Ø 10 mm
- Motor: 6.5 HP (4.5 kW)
- Voltage: 12V
- Gearbox: 3-Stage Planetary Gear
- Gear ratio: 150:1
- Clutch: Manual Engage/Disengage
- Brake: Automatic
- Fairlead: Aluminum Hawse

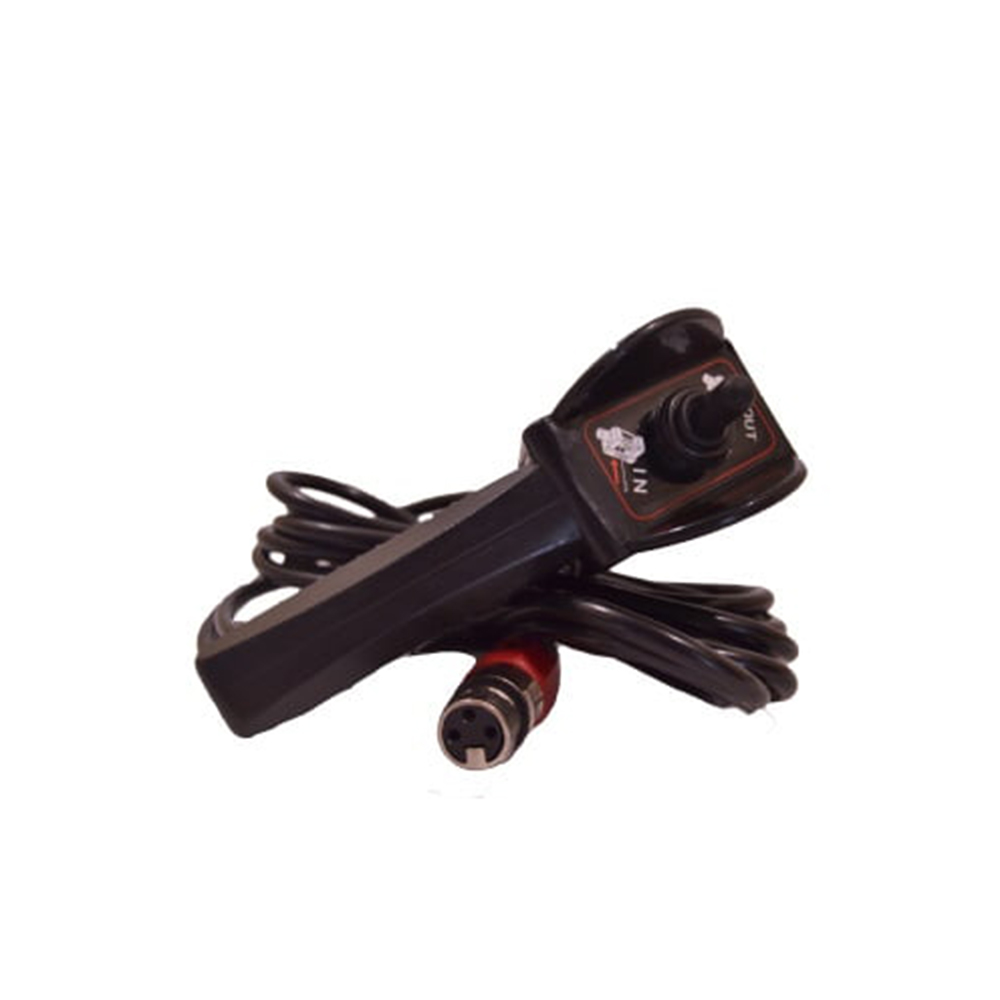

- Remote control: Wired and Wireless
- Control box: Fixed Position (Central)
- Dimensions: 546 mm x 160 mm x 218 mm
- Mounting bolt pattern: 254 mm x 114.3 mm
- Maximum line load: 5,897 kg
- Winch weight: 30 kg

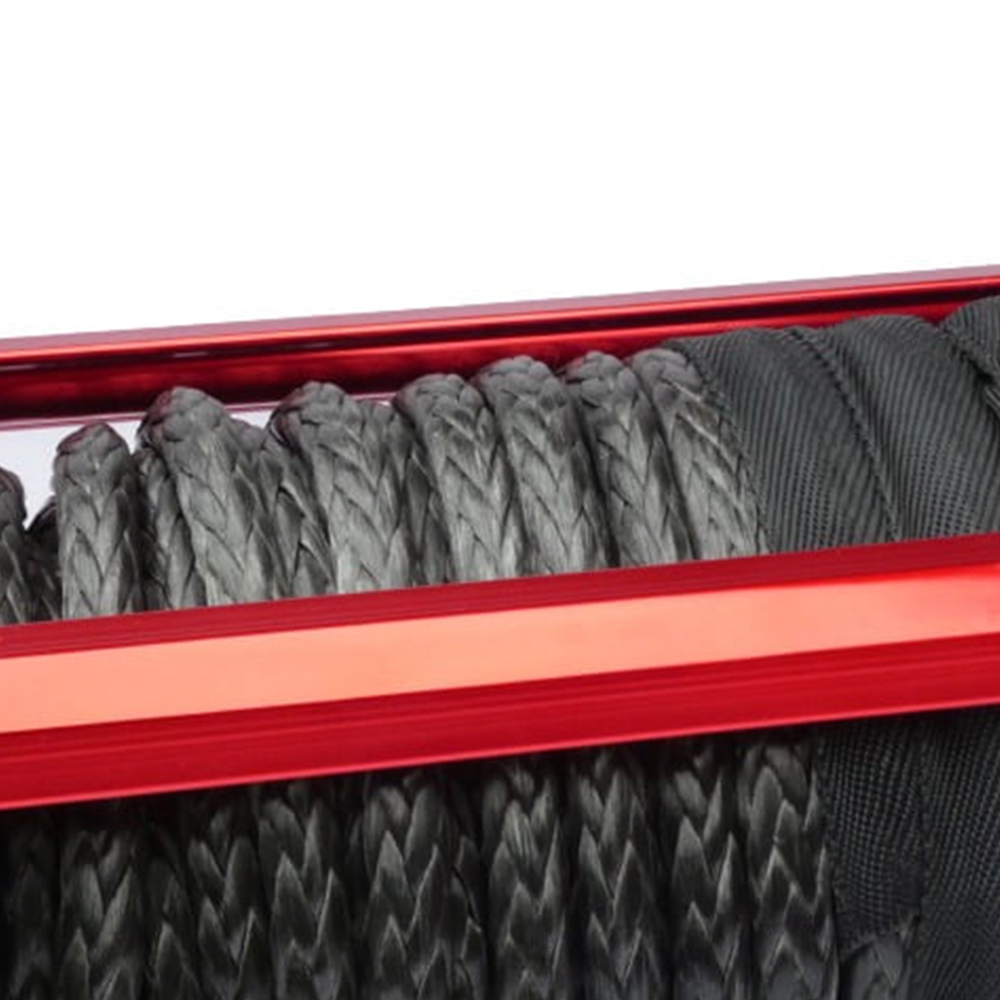

Rope and fairlead
Synthetic rope stores almost no energy under tension, so if the line does part it drops rather than whipping back – a decisive safety advantage over steel. It is also light enough to pull out by hand and will not develop the sharp broken strands that make old steel cable dangerous to handle. Use it only with a hawse fairlead and keep it clear of hot surfaces.
Fitting
Mounting bolt pattern is 254 mm x 114.3 mm, so it fits winch plates and bumpers cut to that pattern. Feed the winch from the battery with correctly rated cable and a suitable isolator, and make sure the mounting plate is tied into the chassis rather than the bumper skin alone.
Operating advice
- Rig a snatch block for heavy or angled pulls – it roughly halves the load on the winch and the anchor
- Winch in short bursts and let the motor cool between pulls
- Keep at least five wraps of line on the drum at all times
- Never use a recovery winch to lift or suspend a load
| Weight | 30 kg |
|---|---|
| Dimensions | 54,6 × 16 × 21,8 cm |
