Grizzly Electric Winch 9,500 lbs 12V 150:1 – Steel Cable
325,00 €
Grizzly 9,500 lbs (4310 kg) 12V electric recovery winch with a 150:1 planetary gearbox and steel cable.
- Capacity: 9500 lbs (4310 kg)
- Motor: 6.0 HP (4.5 kW)
- Cable: 25 m x Ø 9.5 mm
- Gear ratio: 150:1

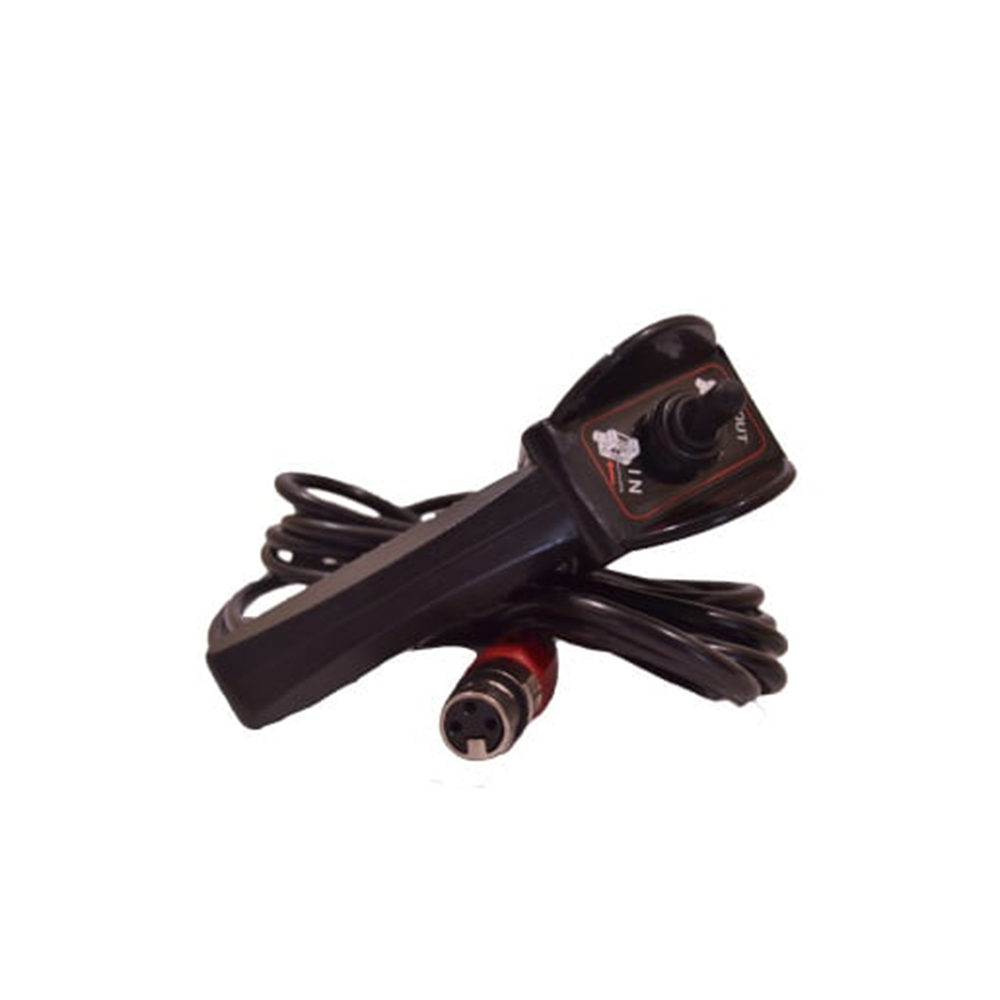

- Remote: Wired and wireless
In stock

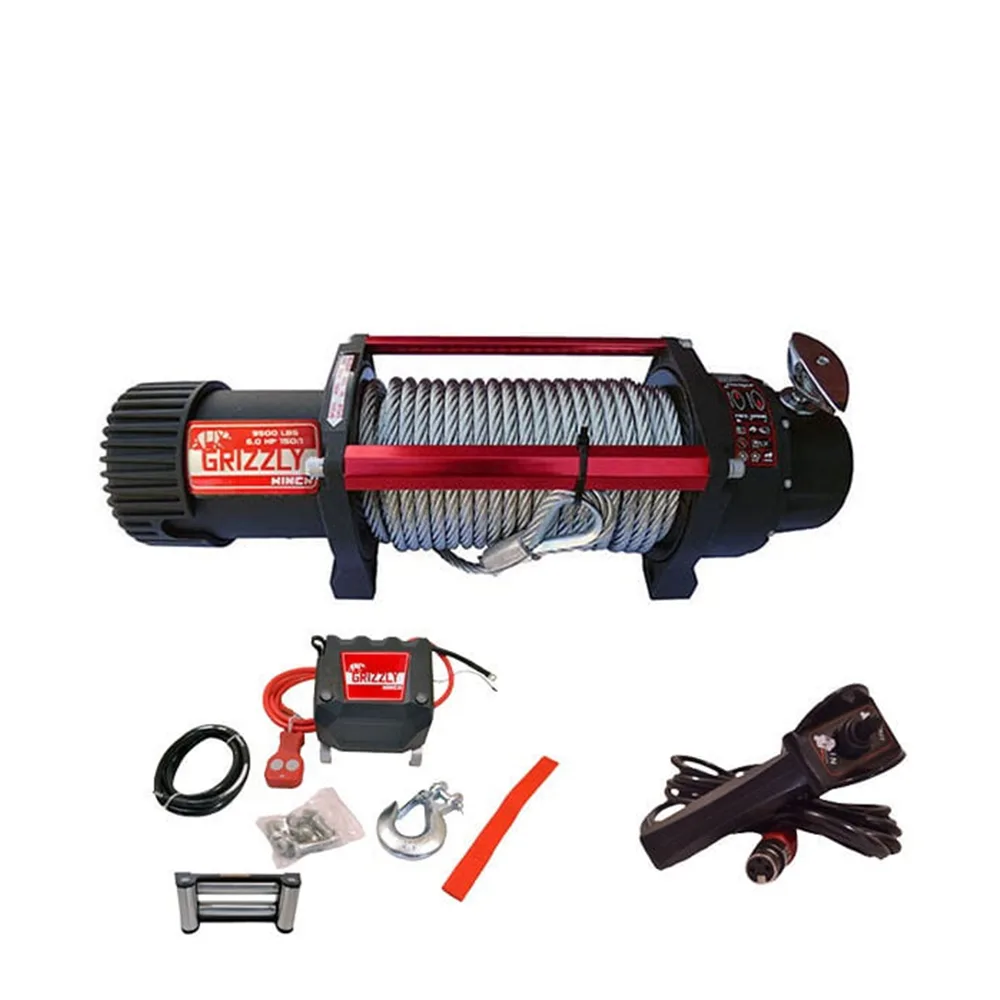

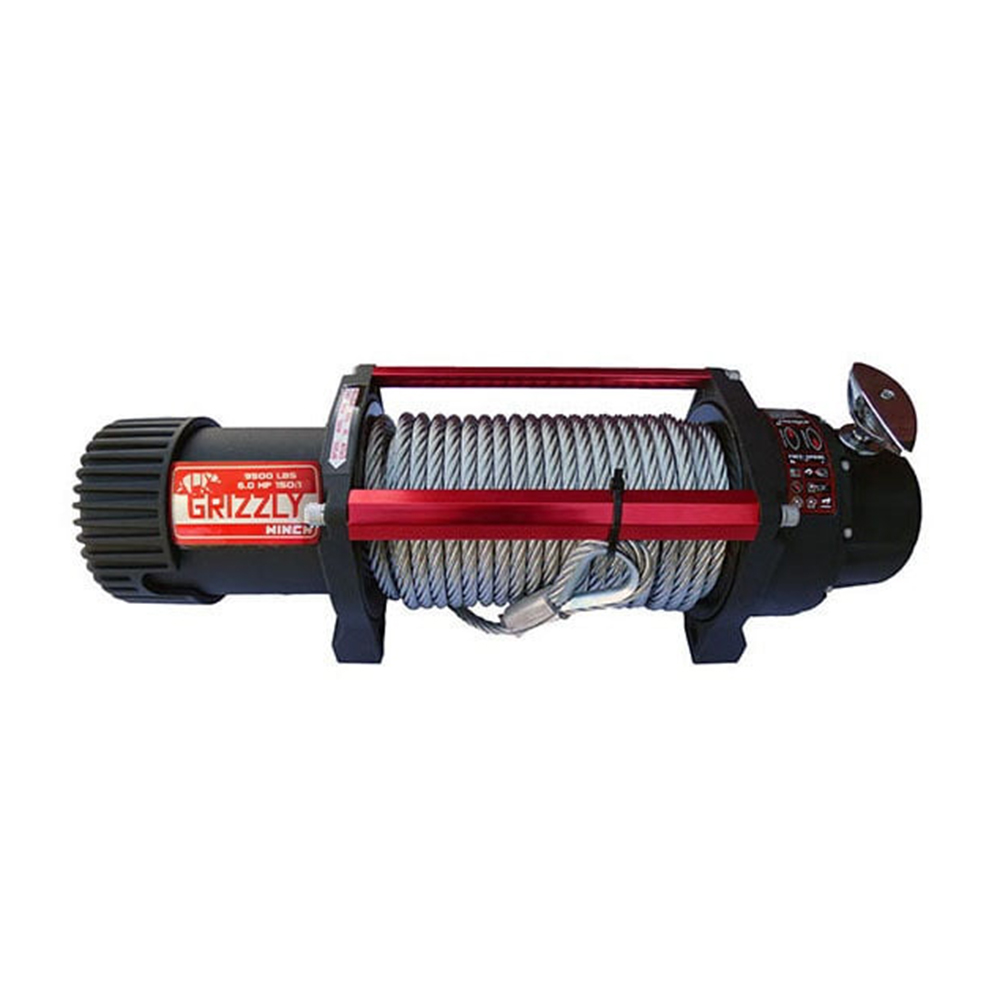

Grizzly 9,500 lbs 12V electric winch
This 9,500 lbs 12V winch is sized for full-size 4x4s and heavily loaded pick-ups. It ships with galvanised steel cable and a roller fairlead for hard, abrasive recovery work.
Technical specification
- Pulling capacity: 9500 lbs (4310 kg)
- Steel cable: 25 m x Ø 9.5 mm
- Motor: 6.0 HP (4.5 kW)
- Voltage: 12V
- Gearbox: 3-stage planetary
- Gear ratio: 150:1
- Clutch: Manual engage/disengage
- Brake: Automatic

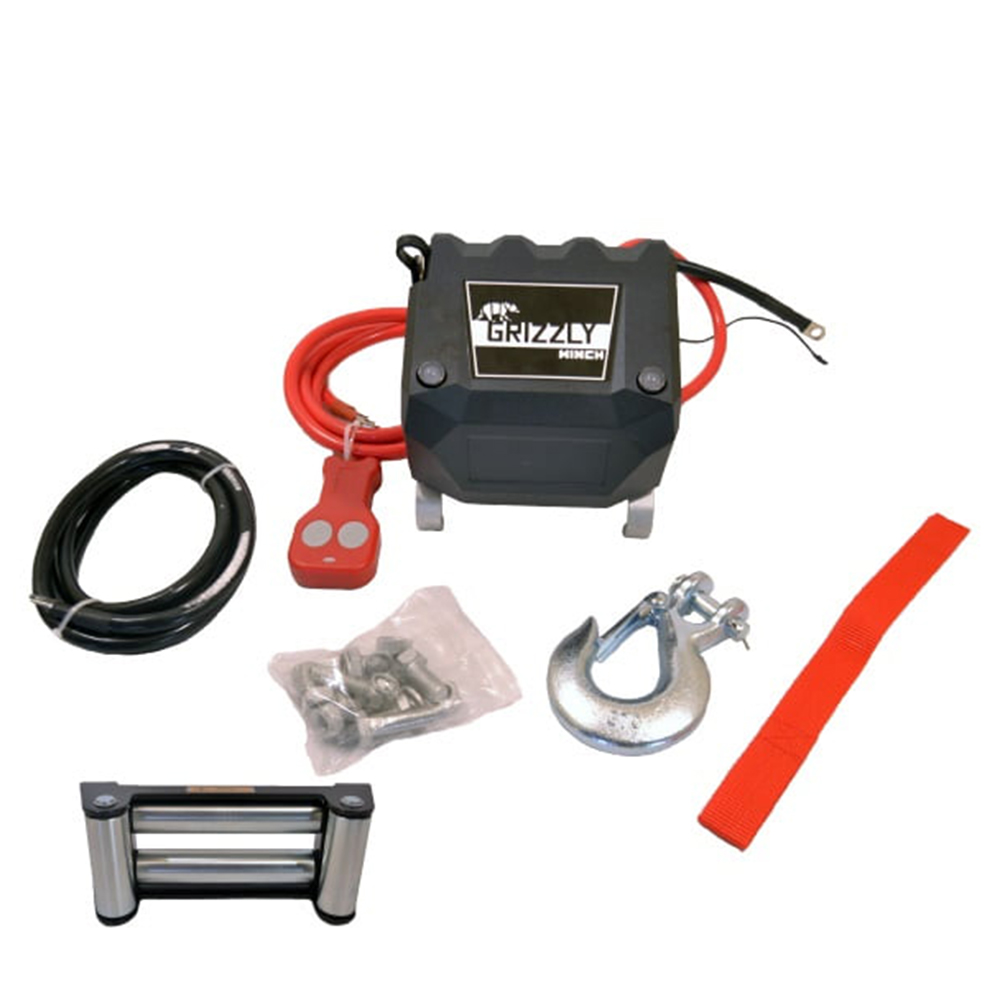

- Fairlead: Steel rollers
- Remote control: Wired and wireless
- Control box: Fixed position (central)
- Dimensions: 546 mm x 160 mm x 218 mm
- Mounting bolt pattern: 254 mm x 114.3 mm
- Maximum line load: 4310 kg
- Winch weight: 33 kg
Rope and fairlead
Galvanised steel cable is highly abrasion resistant and shrugs off dragging over rock and gravel. It stores significant energy under tension, so always lay a damper over the line during a pull and never step over a loaded cable. Wear gloves – used cable develops sharp broken strands.
Fitting
Mounting bolt pattern is 254 mm x 114.3 mm, so it fits winch plates and bumpers cut to that pattern. Feed the winch from the battery with correctly rated cable and a suitable isolator, and make sure the mounting plate is tied into the chassis rather than the bumper skin alone.
Operating advice
- Rig a snatch block for heavy or angled pulls – it roughly halves the load on the winch and the anchor
- Winch in short bursts and let the motor cool between pulls
- Keep at least five wraps of line on the drum at all times
- Never use a recovery winch to lift or suspend a load
| Weight | 34 kg |
|---|---|
| Dimensions | 54,6 × 16 × 21,8 cm |
