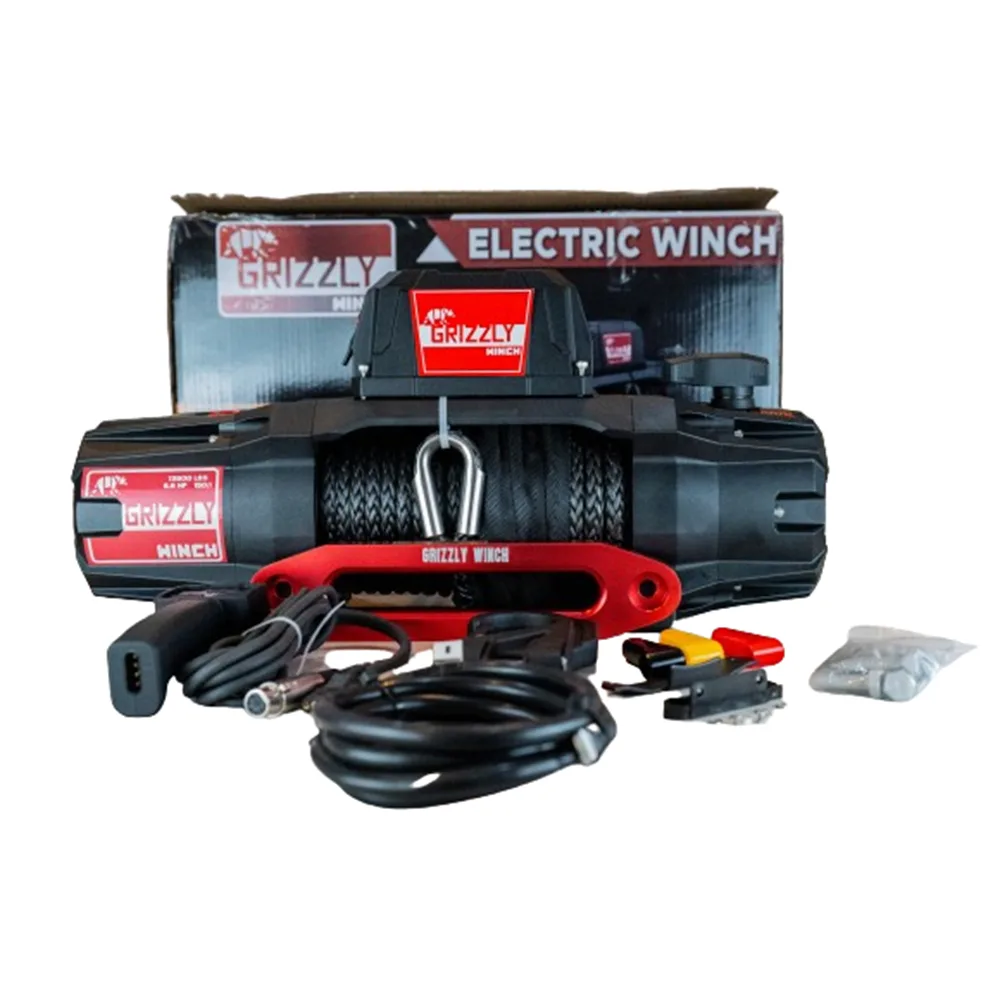

Grizzly Electric Winch 13,500 lbs 12V 150:1 – Synthetic Rope
439,00 €
Grizzly 13,500 lbs (6,123 kg) 12V electric recovery winch with a 150:1 planetary gearbox and synthetic rope.
- Capacity: 13,500 lbs (6,123 kg)
- Motor: 6.8 HP (5.2 kW)
- Rope: 25 m x Ø 10 mm
- Gear ratio: 150:1
Out of stock
Grizzly 13,500 lbs 12V electric winch
This 13,500 lbs 12V winch is sized for full-size 4x4s and heavily loaded pick-ups. It ships with synthetic rope, so it is lighter to handle and far safer if the line ever fails.
Technical specification
- Pulling capacity: 13,500 lbs (6,123 kg)
- Synthetic rope: 25 m x Ø 10 mm
- Motor: 6.8 HP (5.2 kW)
- Voltage: 12V
- Gearbox: 3-Stage Planetary Gear
- Gear ratio: 150:1

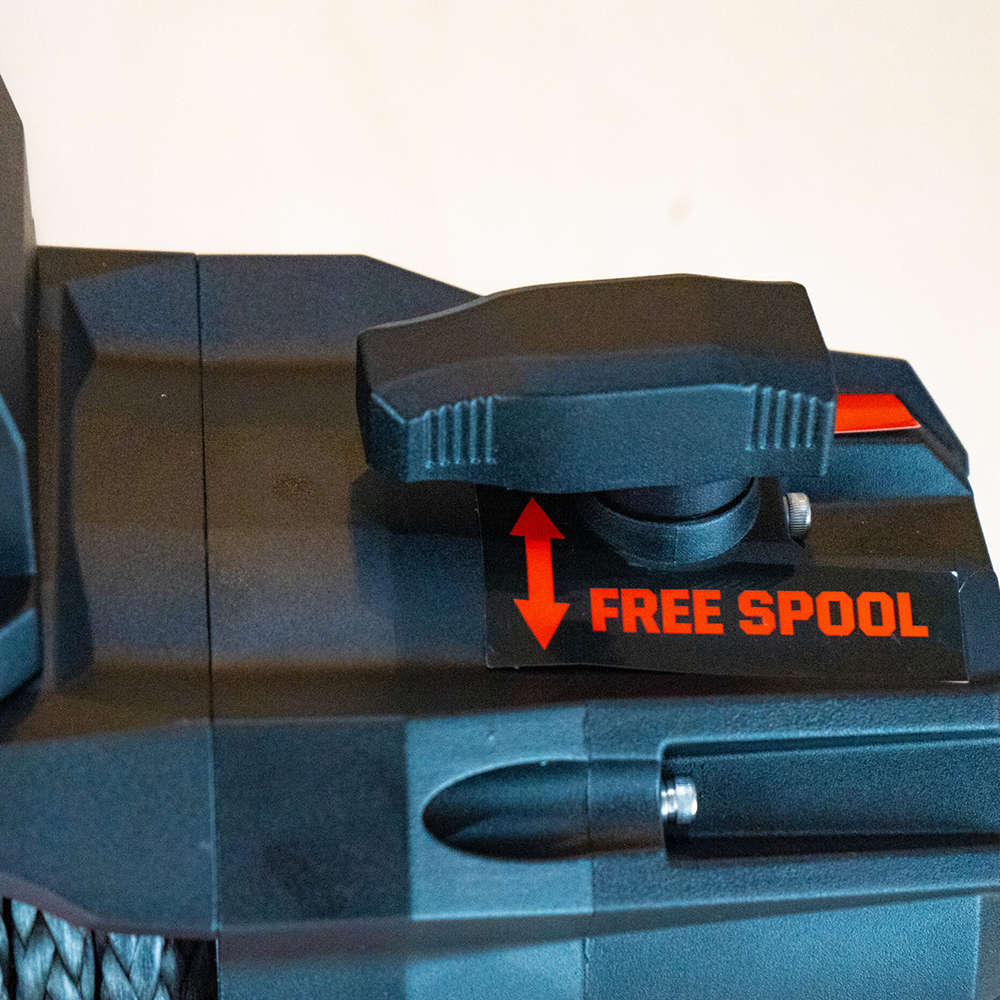

- Clutch: Manual Engage/Disengage
- Brake: Automatic
- Fairlead: Aluminum Hawse
- Control box: Fixed Position (Central)
- Dimensions: 623 mm x 174 mm x 222 mm
- Mounting bolt pattern: 254 mm x 114.3 mm
- Maximum line load: 6,123 kg
- Winch weight: 29 kg

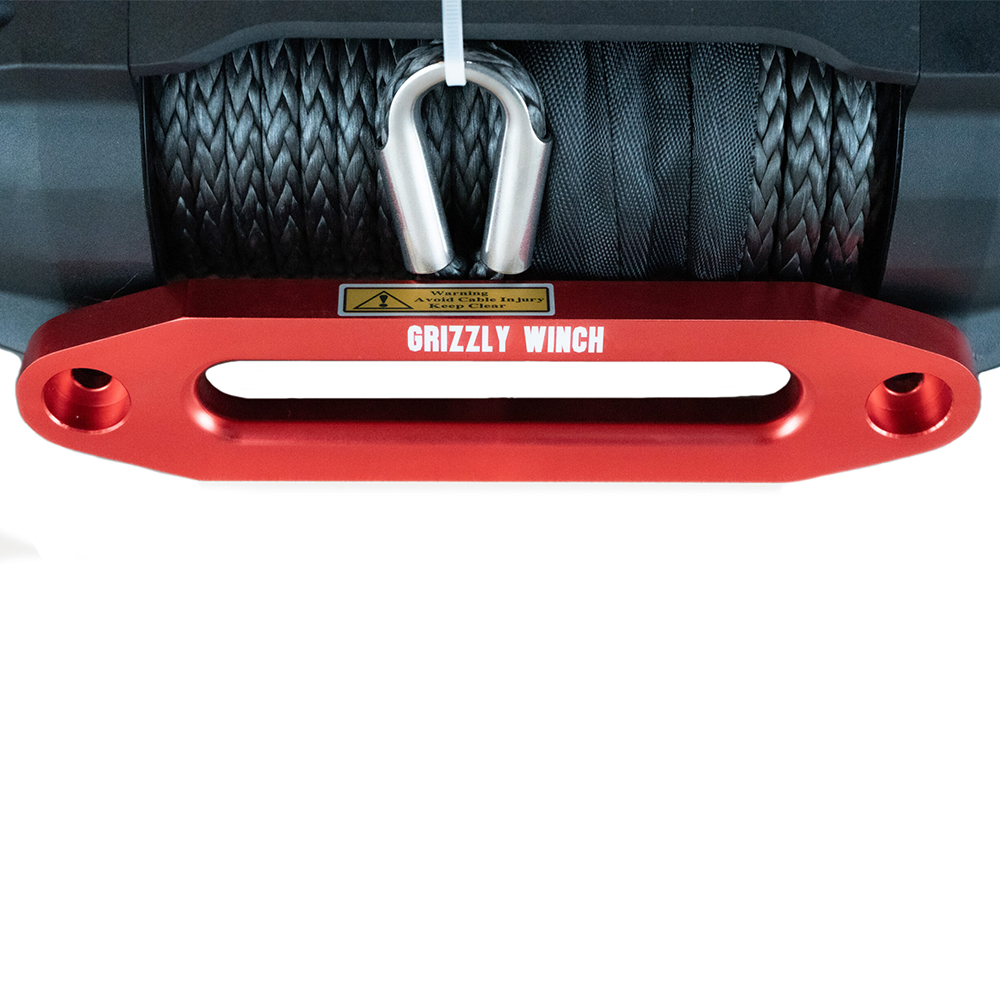

Rope and fairlead
Synthetic rope stores almost no energy under tension, so if the line does part it drops rather than whipping back – a decisive safety advantage over steel. It is also light enough to pull out by hand and will not develop the sharp broken strands that make old steel cable dangerous to handle. Use it only with a hawse fairlead and keep it clear of hot surfaces.
Fitting
Mounting bolt pattern is 254 mm x 114.3 mm, so it fits winch plates and bumpers cut to that pattern. Feed the winch from the battery with correctly rated cable and a suitable isolator, and make sure the mounting plate is tied into the chassis rather than the bumper skin alone.
Operating advice
- Rig a snatch block for heavy or angled pulls – it roughly halves the load on the winch and the anchor
- Winch in short bursts and let the motor cool between pulls
- Keep at least five wraps of line on the drum at all times
- Never use a recovery winch to lift or suspend a load
| Weight | 29 kg |
|---|---|
| Dimensions | 62,3 × 17,4 × 22,2 cm |
